Showing all 12 results

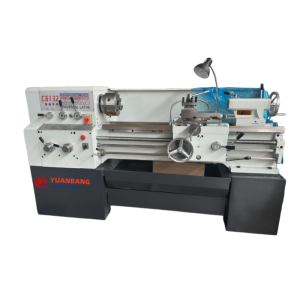

The C6132 series of general-purpose horizontal lathes is suitable for turning internal and external cylindrical surfaces, conical surfaces, and other rotary surfaces. It can also machine various metric, imperial, module, and diametral pitch threads, as well as perform operations such as drilling and oil groove cutting. With its exceptional versatility, this horizontal lathe is widely used for batch processing of shafts and disc-type parts.

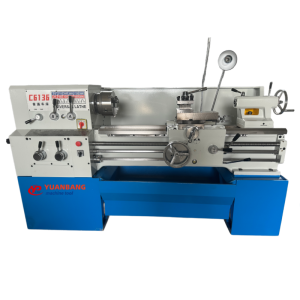

The C6136 series of general-purpose horizontal lathes is suitable for turning internal and external cylindrical surfaces, conical surfaces, and other rotary surfaces. It can also cut various metric, imperial, module, and diametral pitch threads, as well as perform operations such as drilling and grooving. With its highly versatile design, this horizontal lathe is widely used for batch processing of shafts and disc-shaped components.

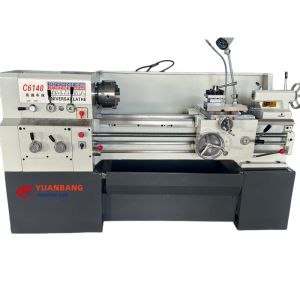

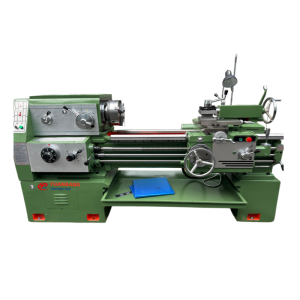

The C6140 series general-purpose horizontal lathes are highly versatile and widely applicable to the batch processing of various shaft and disc parts.
It is a highly versatile horizontal lathe capable of turning various metric, imperial, module, and diametral pitch threads, as well as drilling and oil groove cutting. It is widely used for batch processing of various shaft and disc parts.

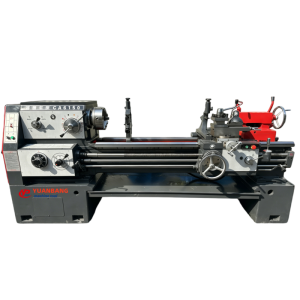

The CA6150 series of general-purpose horizontal lathes are suitable for turning internal and external cylindrical surfaces, conical surfaces, and other rotary surfaces. They can also cut various metric, imperial, module, and diametral pitch threads, as well as perform operations such as drilling and oil groove milling. With their highly versatile nature, these lathes are widely used for batch processing of shafts and disc-type parts.

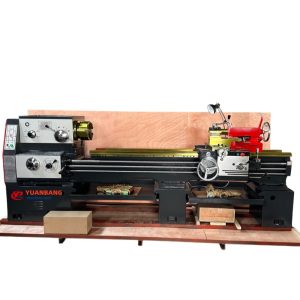

The CA6250 series of general-purpose horizontal lathes is suitable for turning internal and external cylindrical surfaces, conical surfaces, and other rotary surfaces. It can also cut various metric, imperial, module, and diametral pitch threads, as well as perform operations such as drilling and grooving. With its highly versatile design, this horizontal lathe is widely used for batch processing of shafts and disc-shaped components.
Product configuration: Wide range 980TB3 CNC system.
The overall layout adopts an integrated layout of mechanical, electrical, and hydraulic components to ensure the overall coordination and consistency of the machine.
High rigidity, heavy cutting, high stability

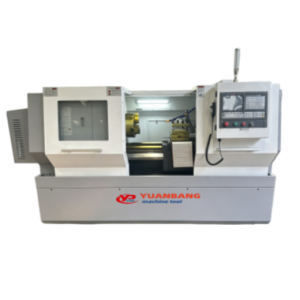

Specification Unit CK6150 Max. Swing over Bed mm Φ500 Max. Swing over Saddle mm Φ290 Max. Machining Length mm 1000 Max. Machining Diameter mm Φ500 Chuck – 250 3-Jaw Spindle Nose Type – A2-8 Spindle Bore Diameter mm Φ82 Spindle Gear Stages – Manual 3 Gears Spindle Speed Range r/min 45-1600 Tool Post Type –…

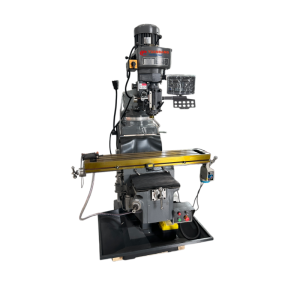

Specification Unit M4 Table Size mm 1270 × 254 Table Travel mm 750 × 400 Vertical Travel mm 400 Max. Vertical Milling Diameter mm 20 Distance from Spindle End to Table Surface mm 0-460 Spindle Taper – R8 Spindle Speed Range r/min 66-4540 (16 steps) Head Rotary Angle ° ±45° Main Motor Power kW 2.2…
The spindle taper hole can be directly or through accessories installed with various cylindrical milling cutters, circular milling cutters, forming milling cutters, end milling cutters and other cutting tools, suitable for processing flat surfaces, inclined surfaces, grooves, holes and other parts. It is an ideal processing equipment for industries such as mechanical manufacturing, molds, instruments, meters, automobiles, motorcycles, etc.

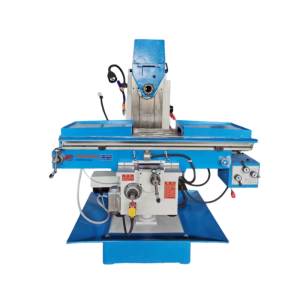

Specification Unit X6036 Spindle Taper – 7:24 ISO50 Distance from Spindle End to Table Surface mm 0-380 Distance from Spindle Center to Vertical Guideway mm 175 Spindle Speed Range r/min 60-1500 (12 steps) Table Size mm 1500 × 360 Table Travel (Long./Cross/Vert.) mm 1000 / 320 / 400 Long./Cross Power Feed Rate mm/min 22-540 (8…

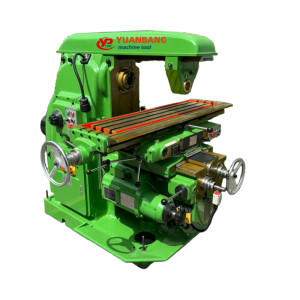

Specification Unit Parameter Spindle Taper – 7:24 ISO50 Distance from Spindle Center to Vertical Guideway mm 30-350 Distance from Spindle Center to Overarm mm 155 Spindle Bore Diameter mm 29 Max. Table Rotary Angle ° ±45° Spindle Speed Range (Steps) r/min 30-1500 (18 steps) Table Surface Size mm 1320 × 320 Table Travel (Long./Cross/Vert.) mm…
