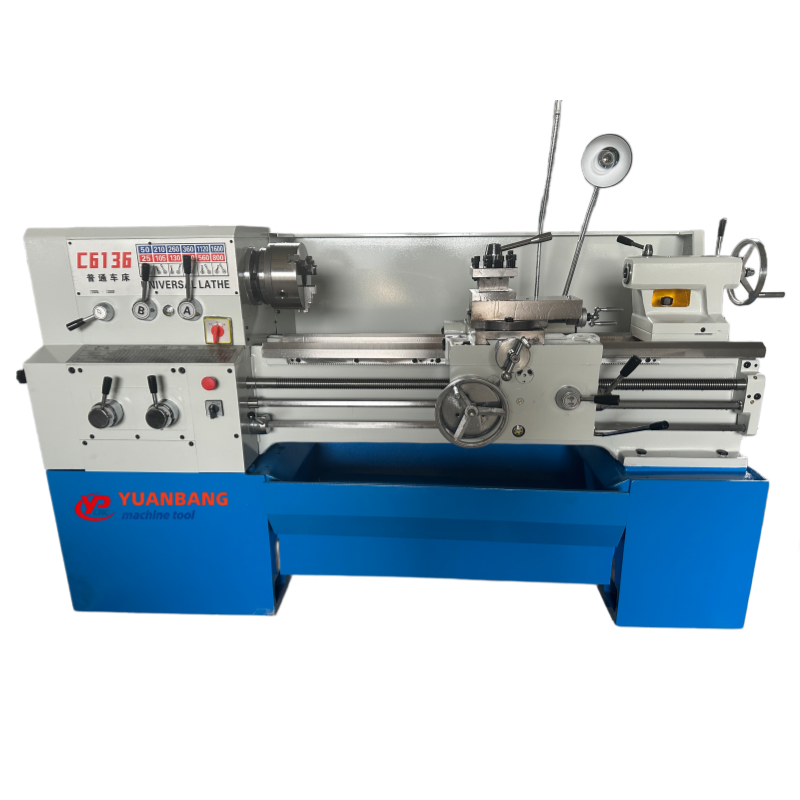

C6136 Lathe Machine
The C6136 series of general-purpose horizontal lathes is suitable for turning internal and external cylindrical surfaces, conical surfaces, and other rotary surfaces. It can also cut various metric, imperial, module, and diametral pitch threads, as well as perform operations such as drilling and grooving. With its highly versatile design, this horizontal lathe is widely used for batch processing of shafts and disc-shaped components.
Description
| Specification | Unit | C6136 |
|---|---|---|
| Center Height | mm | 160 |
| Max. Swing over Bed | mm | 360 |
| Max. Swing over Carriage | mm | 200 |
| Max. Workpiece Length | mm | 750 |
| Spindle Nose Taper | MT | MT6 |
| Spindle Speed Range (Steps) | r/min | 25-1600 (12 steps) |
| Spindle Bore Diameter | mm | 48 |
| Compound Rest Travel | mm | 120 |
| Cross Slide Travel | mm | 200 |
| Tailstock Quill Travel | mm | 130 |
| Tailstock Quill Taper | MT | MT4 |
| Motor Power | kW | 3 / 4.5 |
| Metric Thread Range | mm | 0.45-20 (30 kinds) |
| Inch Thread Range | TPI | 80-1 3/4 TPI (35 kinds) |
| Longitudinal Feed | mm/r | 0.039-1.1 |
| Cross Feed | mm/r | 0.018-0.55 |
| Weight | kg | 1400 |
| Overall Dimension | mm | 2100 × 1050 × 1500 |
