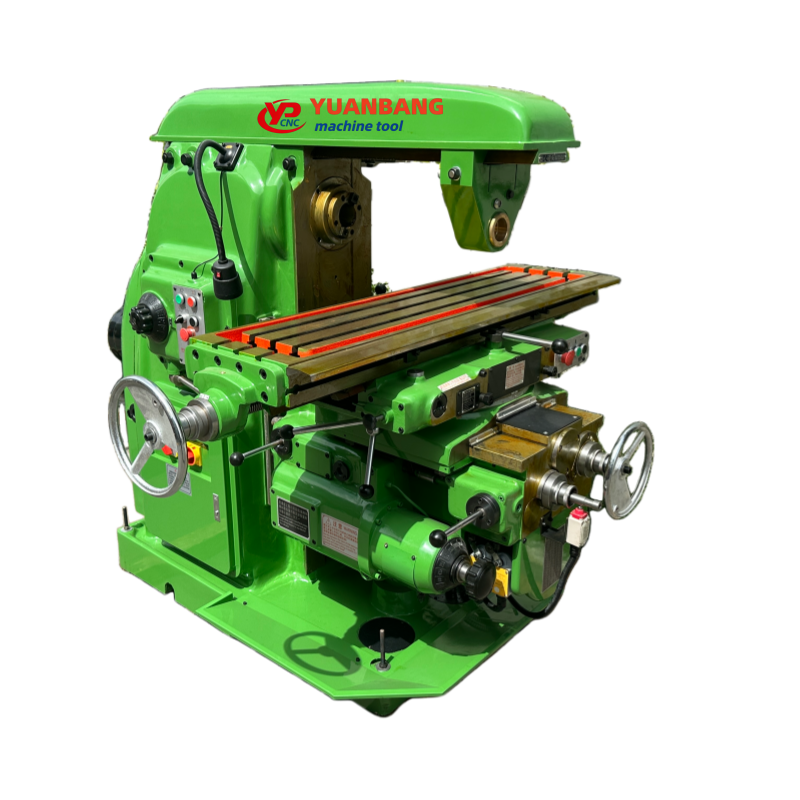

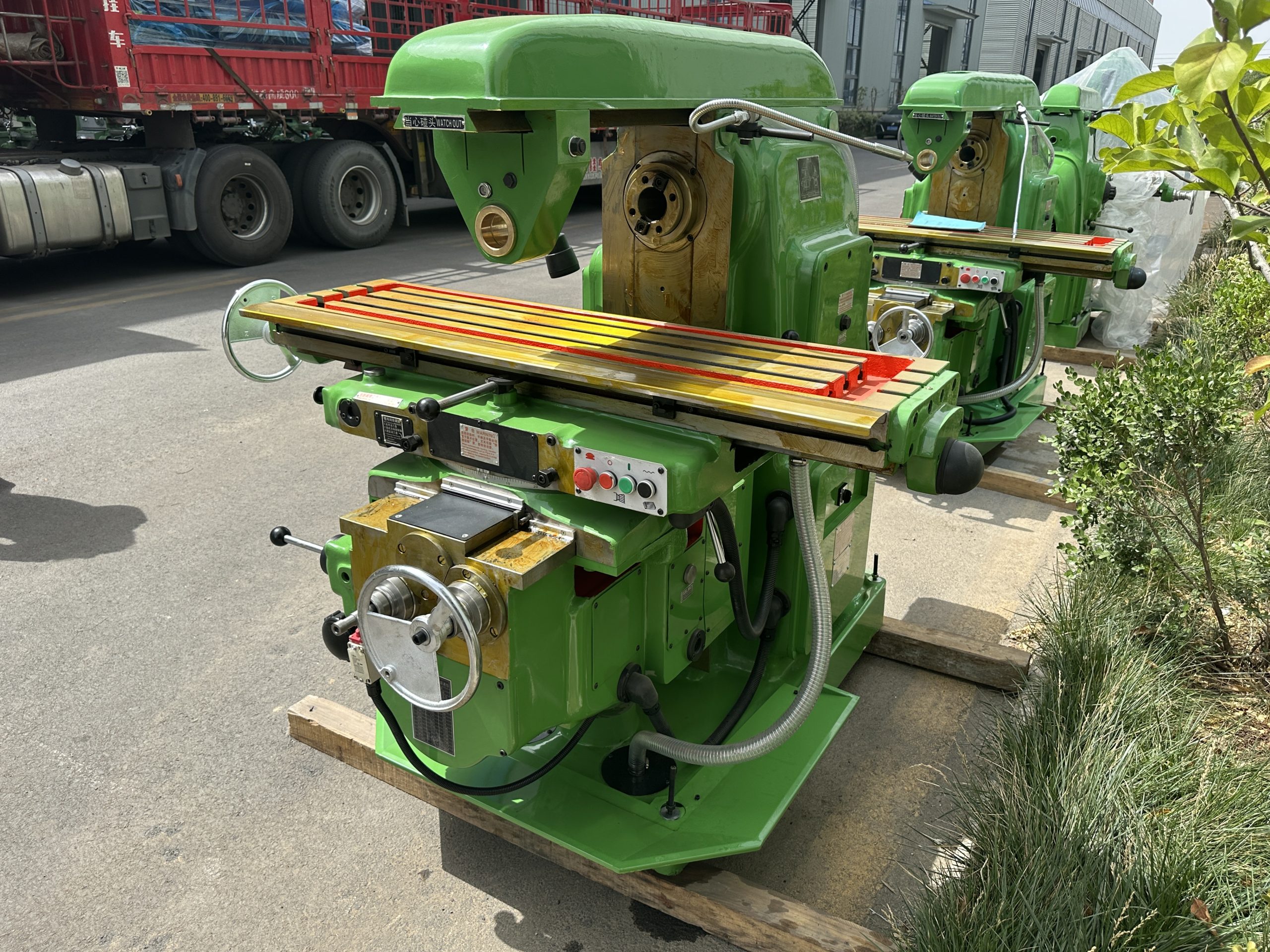

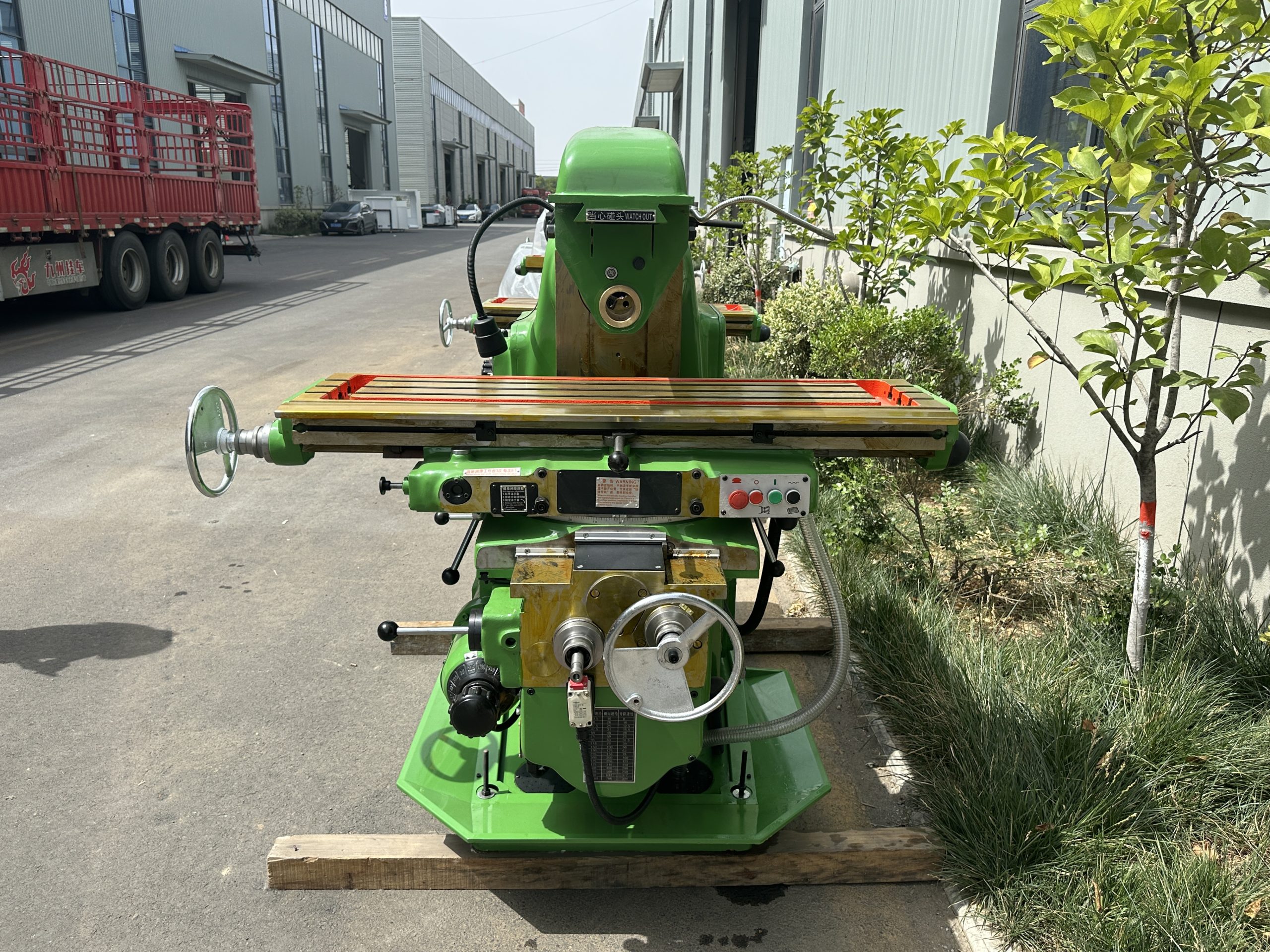

| Spindle Taper |
– |
7:24 ISO50 |
| Distance from Spindle Center to Vertical Guideway |
mm |
30-350 |
| Distance from Spindle Center to Overarm |
mm |
155 |
| Spindle Bore Diameter |
mm |
29 |
| Max. Table Rotary Angle |
° |
±45° |
| Spindle Speed Range (Steps) |
r/min |
30-1500 (18 steps) |

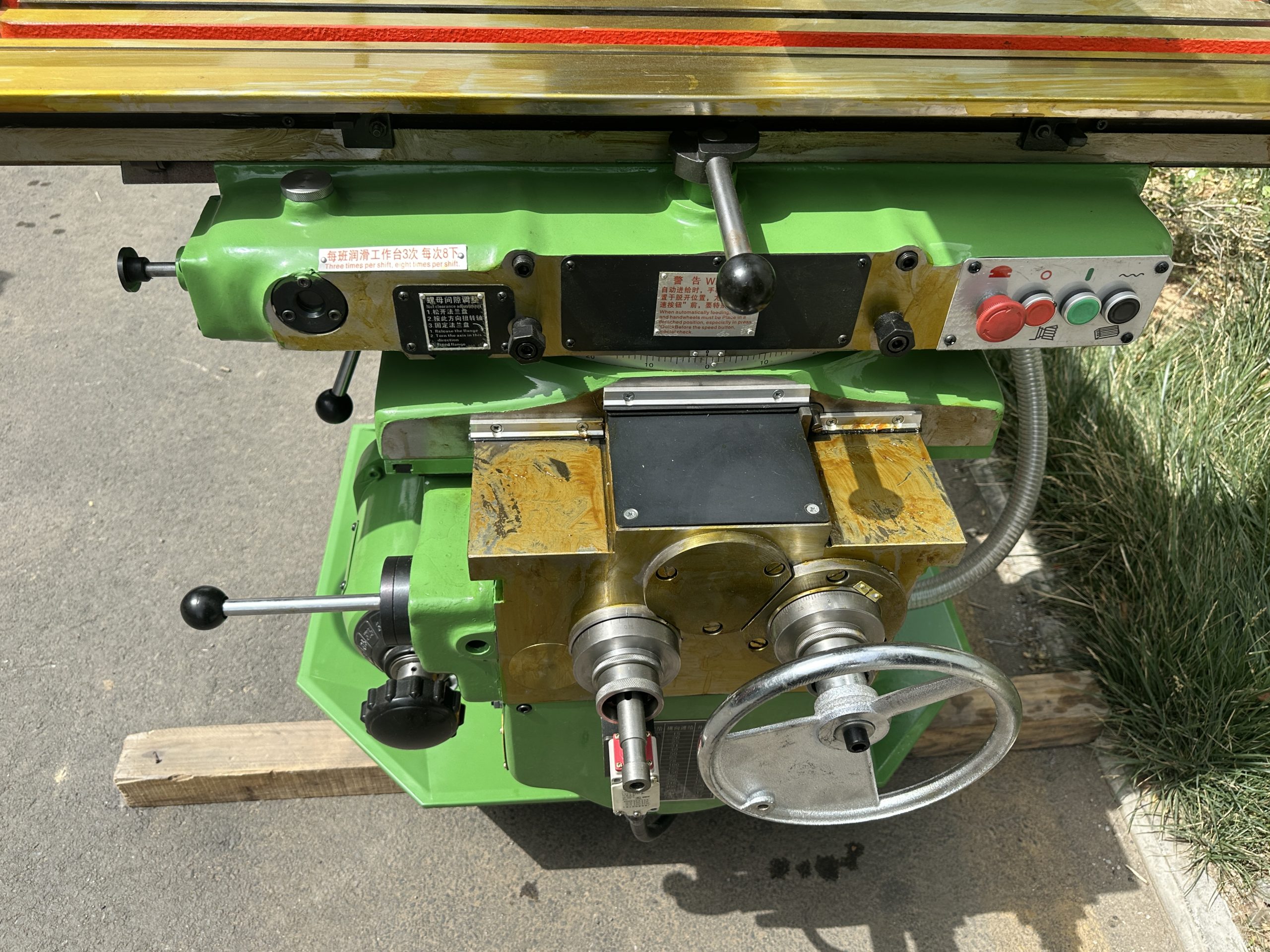

| Table Surface Size |
mm |
1320 × 320 |
| Table Travel (Long./Cross/Vert.) |
mm |
700(680) / 255(240) / 320(300) |
| Table Feed Range (Long./Cross/Vert.) |
mm/min |
23.5-1180 / 23.5-1180 / 8-394 (18 steps) |
| Table Rapid Travel (Long./Cross/Vert.) |
mm/min |
2300 / 2300 / 770 |
| Table T-slot (No./Width/Pitch) |
mm |
3 / 18 / 70 |
| Main Motor Power |
kW |
7.5 |
| Feed Motor Power |
kW |
1.5 |
| Overall Dimension (L×W×H) |
mm |
2294 × 1770 × 1665 |
| Net Weight |
kg |
2700 / 2900 |
