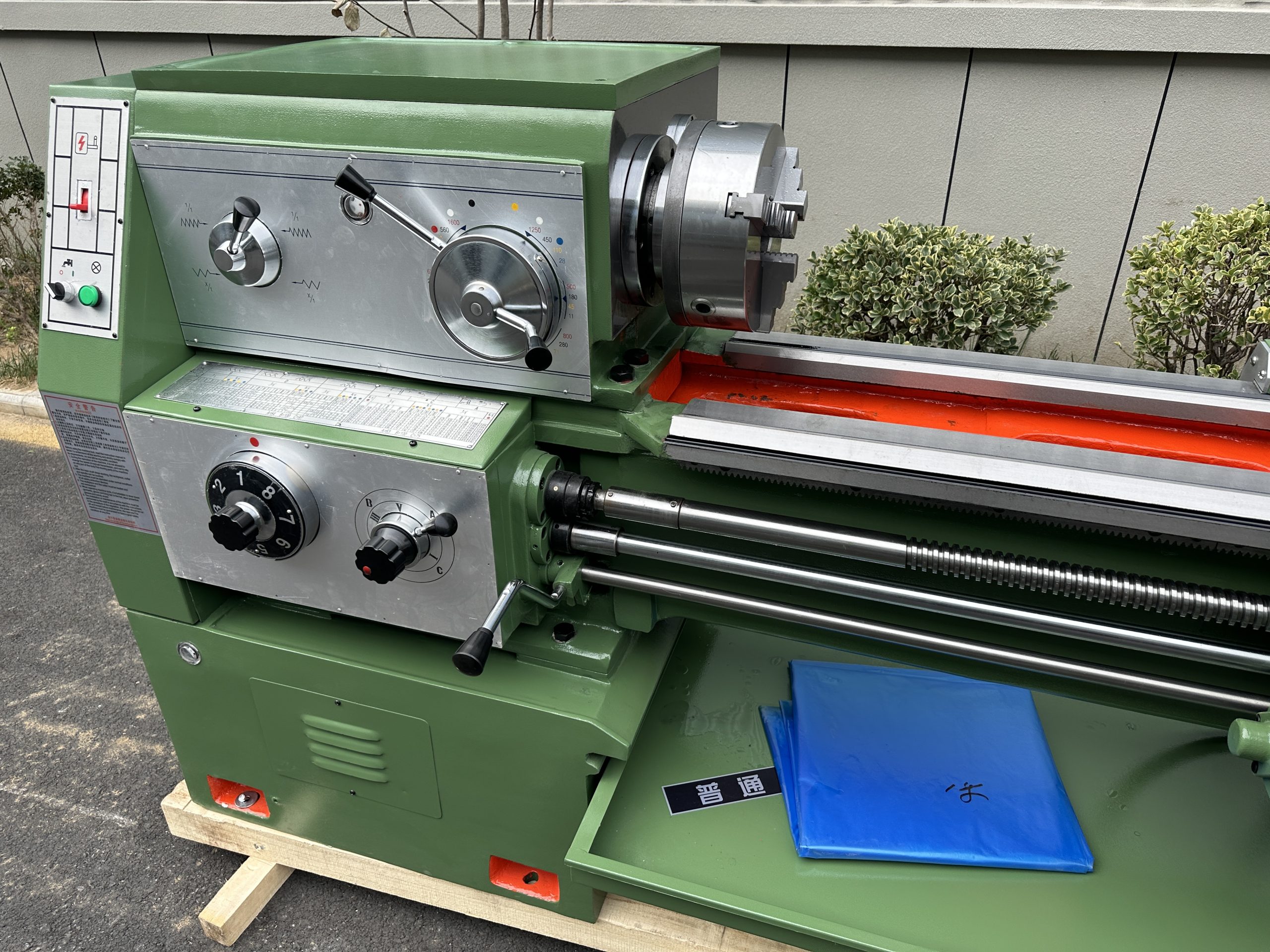

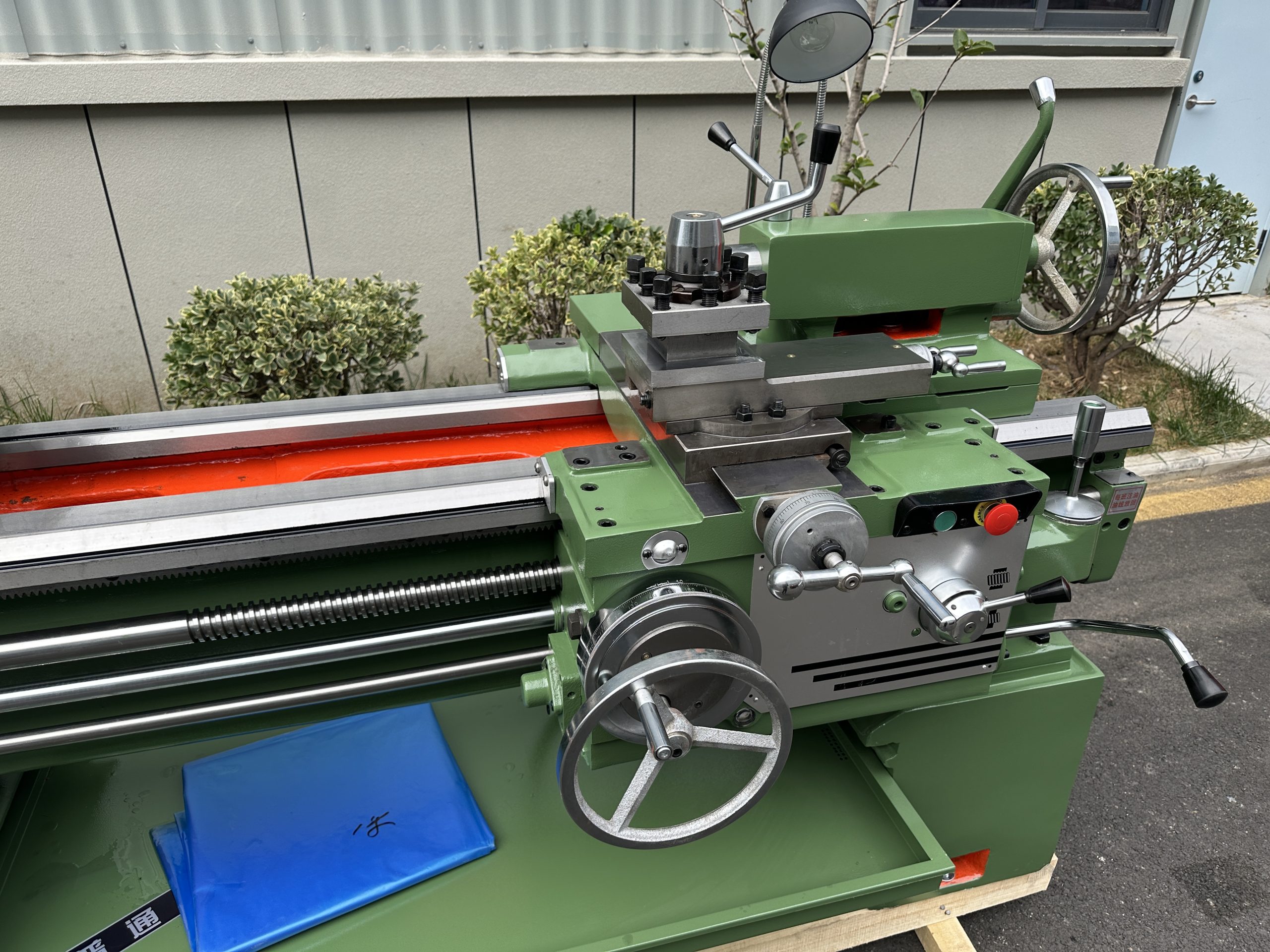

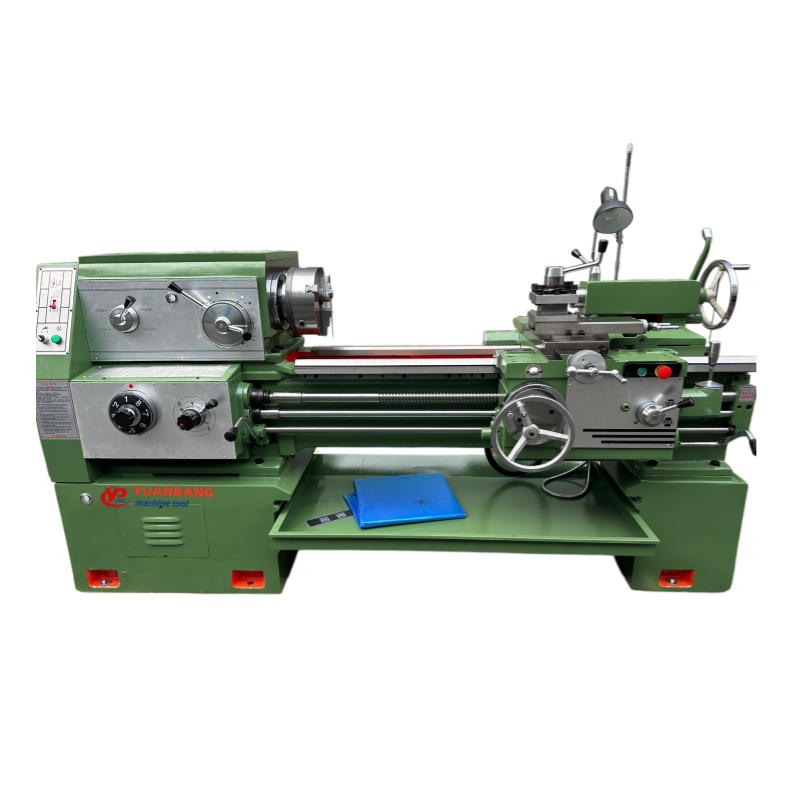

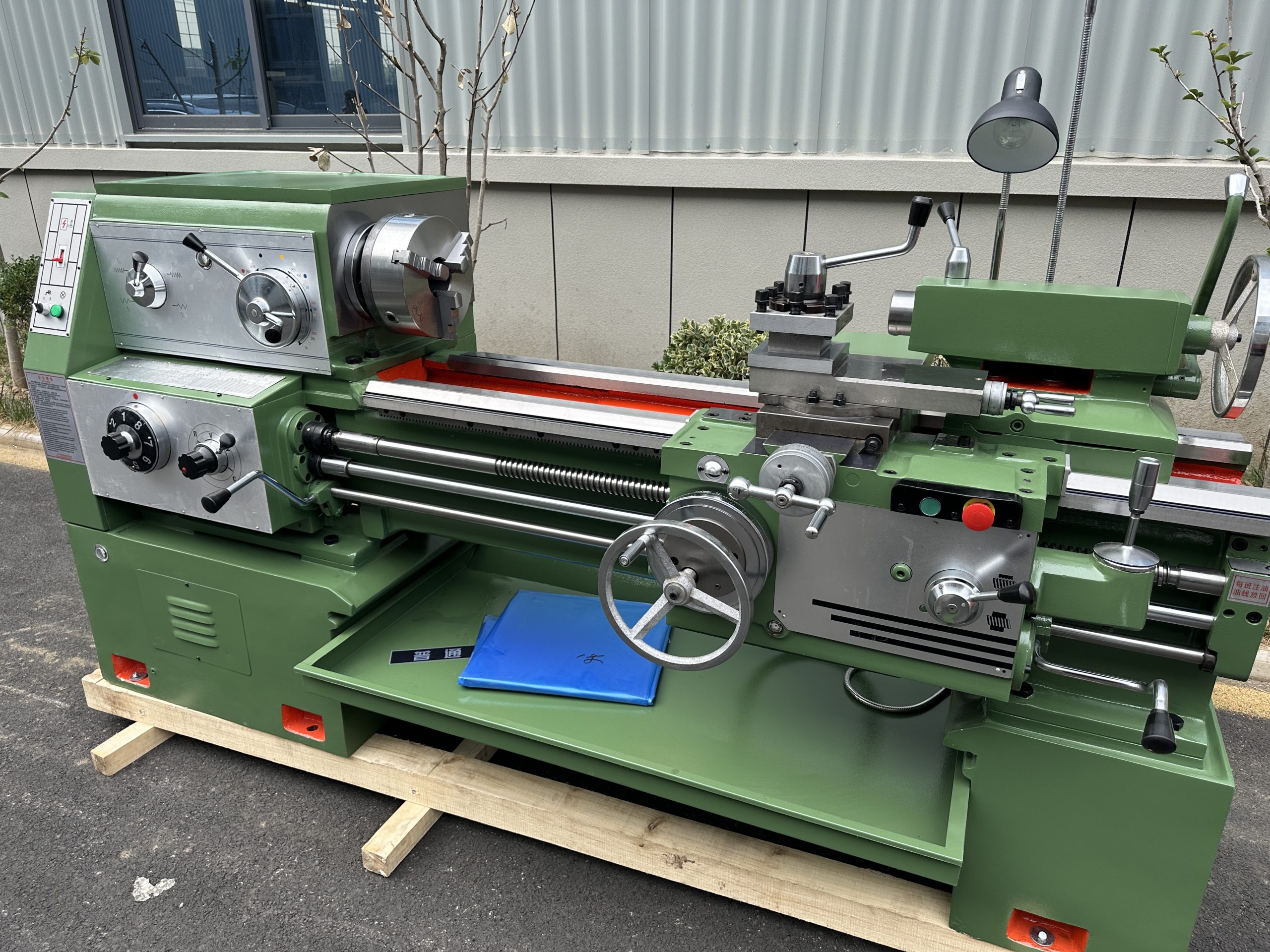

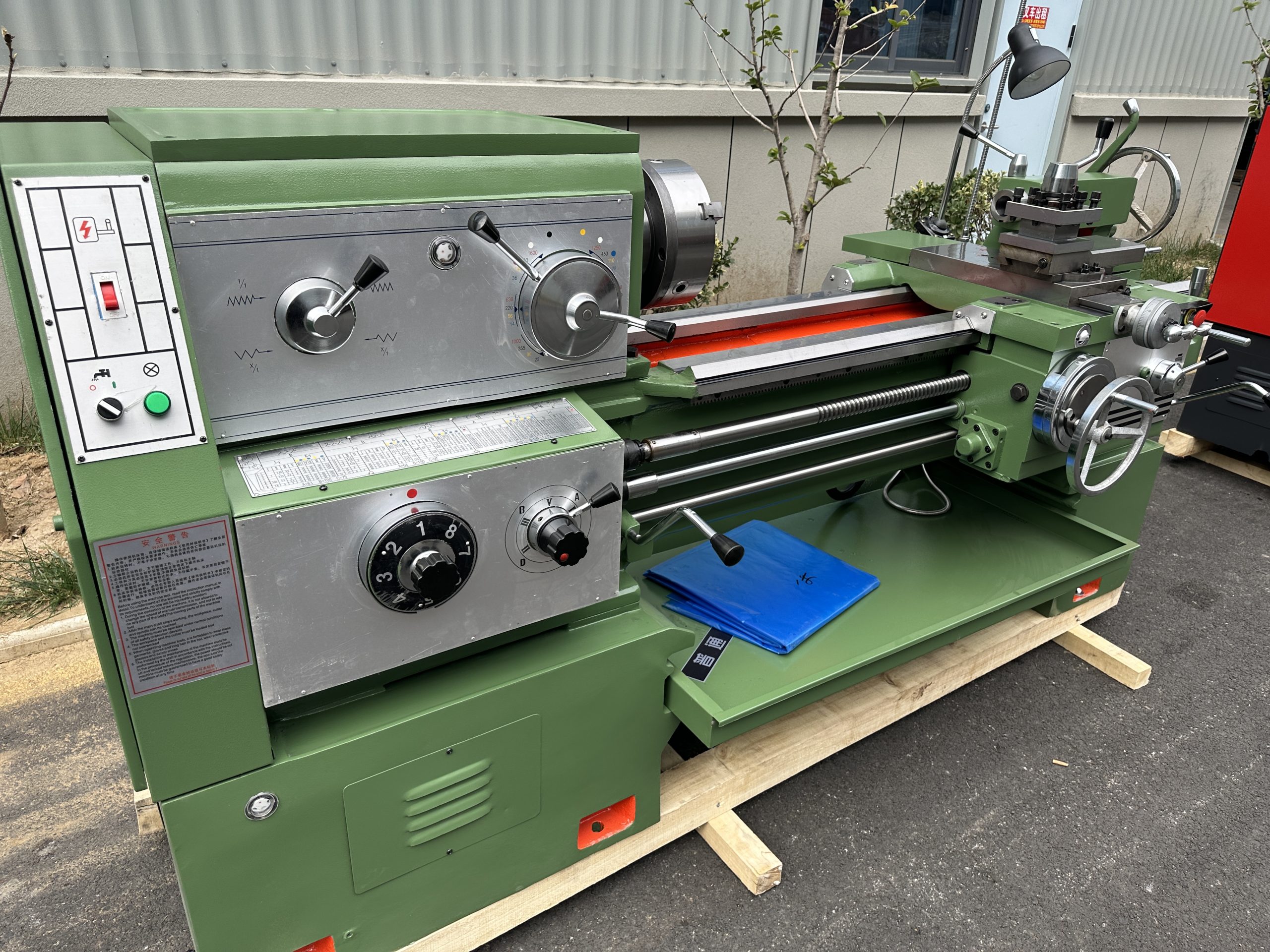

CA6140 Ordinary lathe
It is a highly versatile horizontal lathe capable of turning various metric, imperial, module, and diametral pitch threads, as well as drilling and oil groove cutting. It is widely used for batch processing of various shaft and disc parts.
Description
| Specification | Unit | Parameter |
|---|---|---|
| Max. Swing over Bed | mm | Φ400 |
| Max. Swing over Saddle | mm | Φ210 |
| Max. Workpiece Length | mm | 1000 |
| Max. Workpiece Weight | kg | 300 |
| Bed Guideway Width | mm | 400 |
| Spindle Bore Diameter | mm | Φ52 |
| Spindle Nose Type | – | ISO (GB) A26 |
| Spindle Nose Taper | MT | MT6 |
| Distance from Spindle Center to Bed Guideway | mm | 205 |
| Spindle Speed Stages (Forward) | – | 24 steps |
| Spindle Speed Stages (Reverse) | – | 12 steps |
| Spindle Speed Range (Forward) | r/min | 11-1600 |
| Spindle Speed Range (Reverse) | r/min | 14-1580 |
| Feed Rate Types | – | 64 kinds |
| Longitudinal Standard Feed | mm/r | 0.08-1.59 |
| Longitudinal Fine Feed | mm/r | 0.028-0.054 |
| Longitudinal Extended Feed | mm/r | 1.71-6.33 |
| Cross Standard Feed | mm/r | 0.04-0.79 |
| Cross Fine Feed | mm/r | 0.014-0.027 |
| Cross Extended Feed | mm/r | 0.86-3.16 |
| Metric Thread Range | mm | 44 kinds, 1-192 |
| Module Thread Range | mm | 39 kinds, 0.25-48 |
| Inch Thread Range | TPI | 21 kinds, 2-24 |
| Diametral Pitch Thread Range | DP | 37 kinds, 1-96 |
| Longitudinal Rapid Speed | m/min | 4 |
| Cross Rapid Speed | m/min | 2 |
| Main Motor Power | kW | 7.5 |
| Tool Post Type | – | Vertical Four-way Tool Post |
| Tool Shank Size | mm | 25×25 |
| Upper / Lower Slide Max. Travel | mm | 140 / 320 |
| Tool Post Rotary Angle | ° | ±90° |
| Distance from Spindle Center to Tool Support | mm | 26 |
| Tailstock Quill Diameter | mm | Φ75 |
| Tailstock Quill Travel | mm | 150 |
| Tailstock Quill Taper | MT | MT5 |
| Coolant Motor Power | W | 90 |
| Coolant Pump Head | m | 5 |
| Coolant Pump Flow | L/min | 25 |
| Power Supply | – | 380V±10%, 50Hz±1%, 3-phase AC |
| Ambient Temperature | ℃ | 0~40 |
| Relative Humidity | % | ≤92% |
| Overall Dimension (L×W×H) | mm | 2700 × 1140 × 1350 |
| Net Weight | kg | 2250 |
