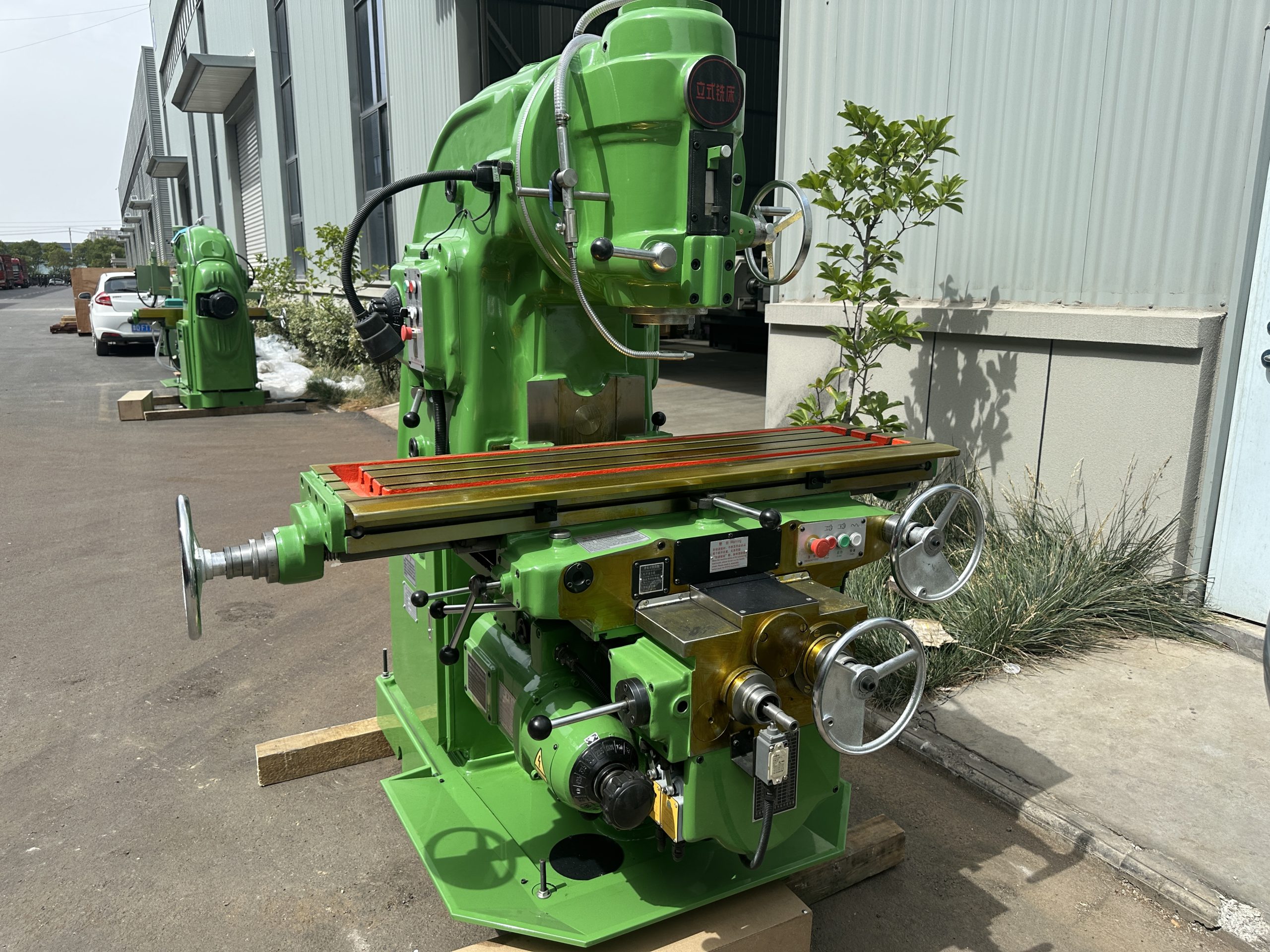

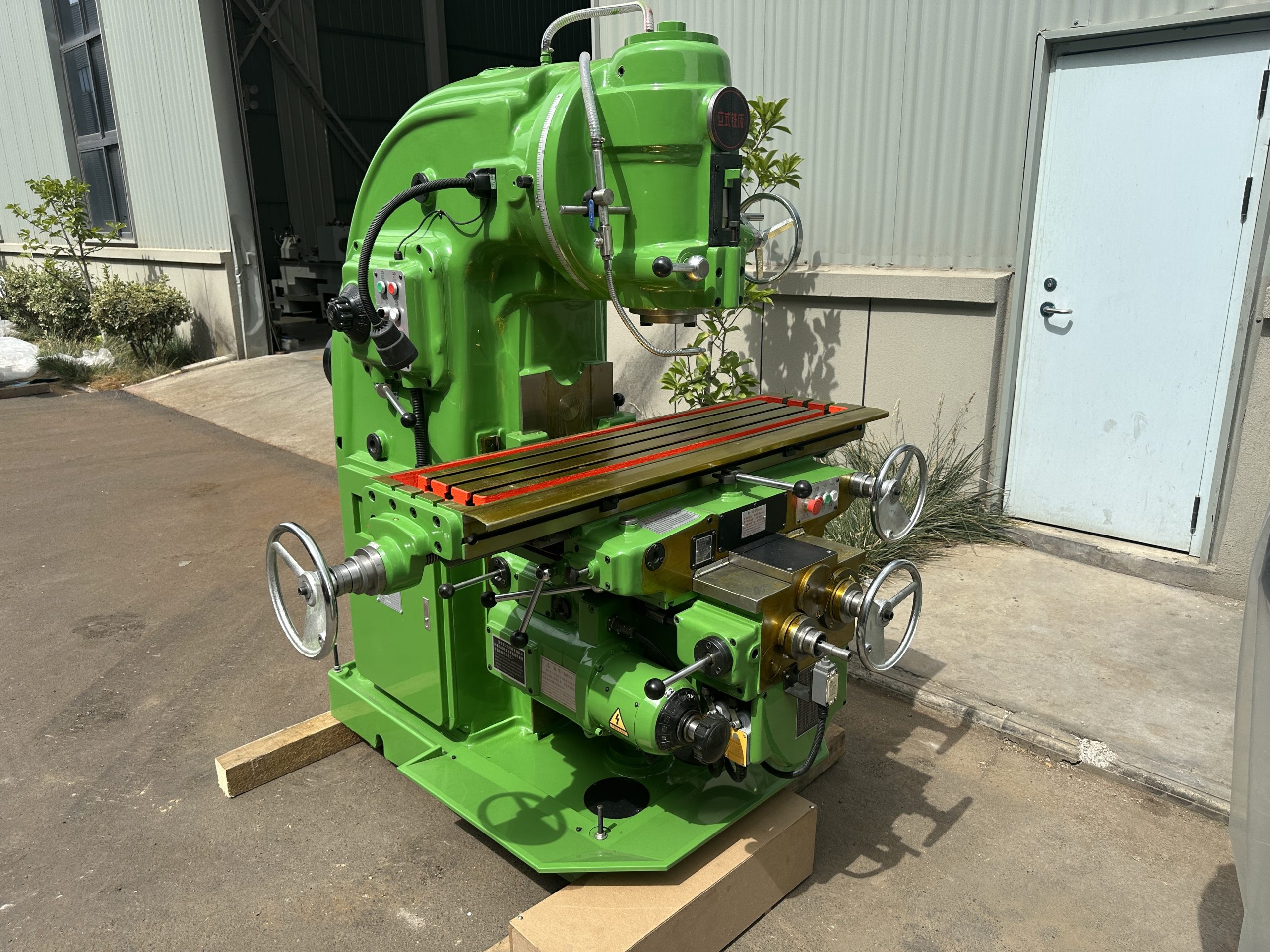

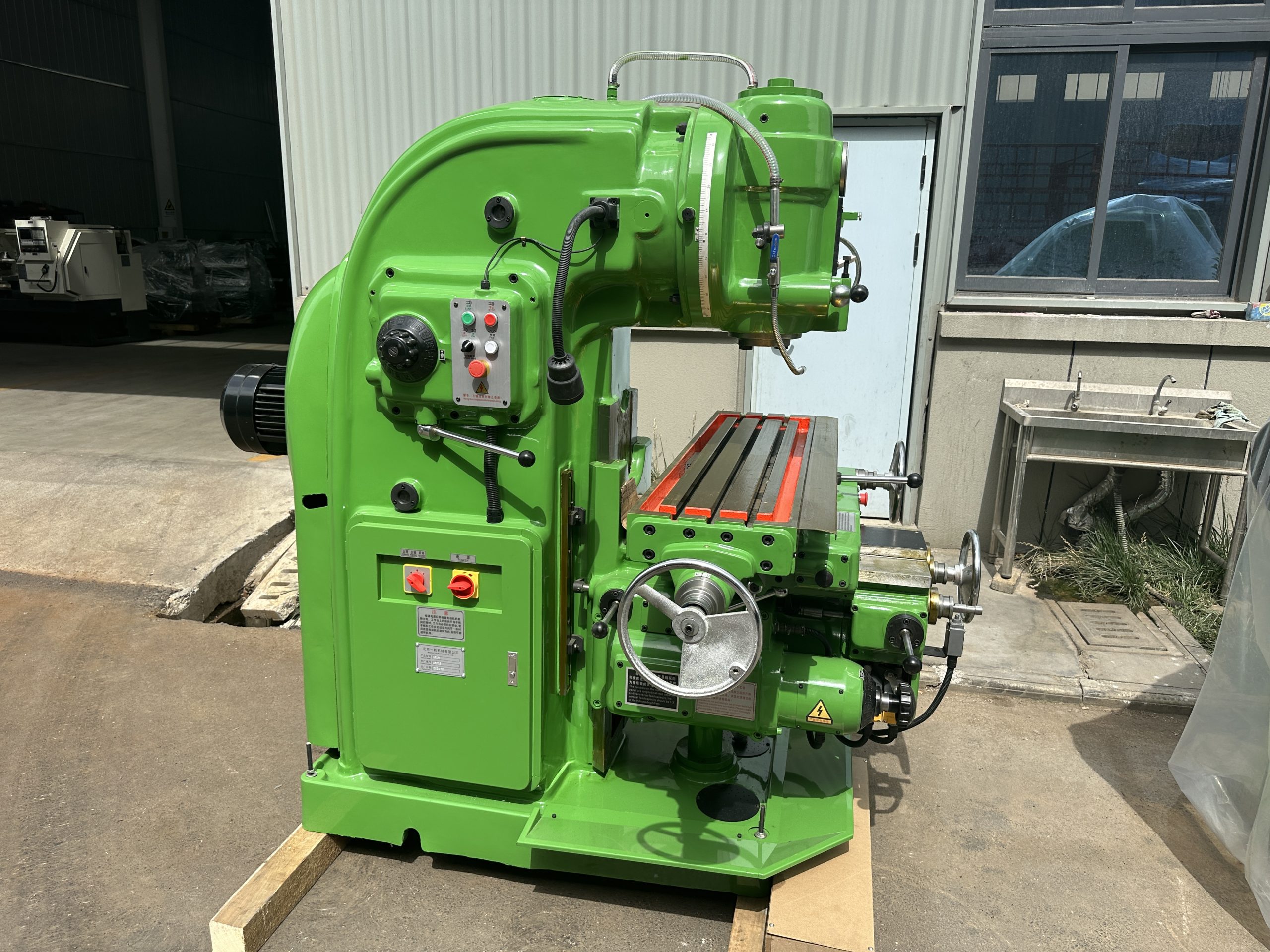

X5032 Vertical milling machine
The spindle taper hole can be directly or through accessories installed with various cylindrical milling cutters, circular milling cutters, forming milling cutters, end milling cutters and other cutting tools, suitable for processing flat surfaces, inclined surfaces, grooves, holes and other parts. It is an ideal processing equipment for industries such as mechanical manufacturing, molds, instruments, meters, automobiles, motorcycles, etc.
Description
| Specification | Unit | Parameter |
|---|---|---|
| Spindle Taper | – | 7:24 ISO50 |
| Distance from Spindle Center to Vertical Guideway | mm | 350 |
| Distance from Spindle End to Table Surface | mm | 45~395 |
| Spindle Bore Diameter | mm | 29 |
| Max. Rotary Angle of Milling Head | ° | ±45° |
| Spindle Speed Range (Steps) | r/min | 30~1500 (18 steps) |
| Spindle Axial Travel | mm | 85 |
| Table Surface Size | mm | 1325 × 320 |
| Table Travel (Long./Cross/Vert.) | mm | 700(680) / 255(240) / 350(330) |
| Table Feed Range (Long./Cross/Vert.) | mm/min | 23.5-1180 / 23.5-1180 / 8-394 |
| Table Rapid Travel (Long./Cross/Vert.) | mm/min | 2300 / 2300 / 770 |
| Table T-slot (No./Width/Pitch) | mm | 3 / 18 / 70 |
| Main Motor Power | kW | 7.5 |
| Feed Motor Power | kW | 1.5 |
| Overall Dimension (L×W×H) | mm | 1940 × 1770 × 2150 |
| Net / Gross Weight | kg | 2900 |
